Home » Products » SOLAR PRODUCT » MC4 FUSE CONNECTOR

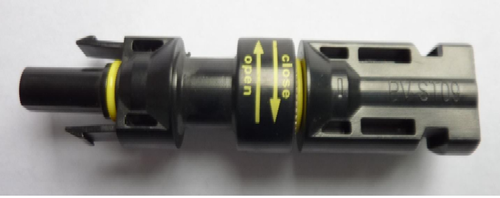

MC4 FUSE CONNECTOR

MC4 FUSE CONNECTOR
MC4 FUSE CONNECTOR
Send Inquiry
Product Code : NA
Brand Name : REOO
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Pair/Pairs
  • Price
  • 180 INR
  • Price Range
  • 180.00 - 190.00 INR
Product Specifications
  • Product Type
  • solar product
Product Description
Dimensions (H*W*D):        ø 19mmX97mm
Total weight(terminal block include):        26g
Certification Mark           ULPlug Housing (RTI) PC(115℃)
 Receptacle contact material        Copper/silver plated
Max. system voltage                       1000VDC
Rated impulse voltage                       8000VAC
Rated insulation voltage                    6000VDC
 Rated current                                      30A
Fuse Current                                   15 A
Size of fuse (Max)            ø6mmX30mm (ø8mmX30mm )
voltage withstand                   1.8KV/1mA/1min
 leakage current      <       10 uA
waterproof grade                IP67
Temperature range           -40℃~85℃
Flame retardance             UL94-VO
weather-resistance          no serious appearance defects after Ultravioletirradiation and humid heat test

Trade Information
  • Supply Ability
  • 1000 Per Week
  • Main Domestic Market
  • All India
