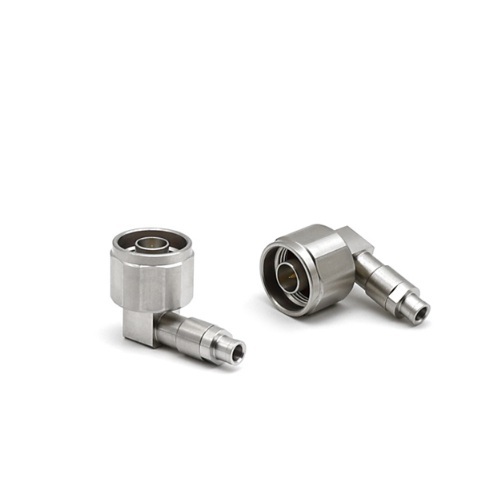

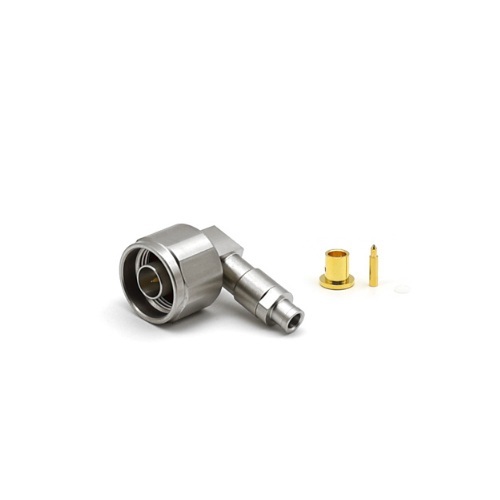

N male right angel for STA360/CXN3507 cable RF Coaxial Connector
500 INR/Piece
Product Details:
- Usage & Applications RF signal transmission systems, antenna connectivity, communication equipment, and testing setups
- Product Type N Male Right Angle Connector for STA360/CXN3507 Cable
- Material Brass body, brass contact pin, Teflon insulator
- Usage Used for secure connection between STA360/CXN3507 cable and RF devices
- Function Provides stable right-angle connection with low signal loss and reliable signal transfer
- Application Antenna systems, wireless communication units, RF modules, and instrumentation equipment
- Finish Gold plated or corrosion-resistant finish for improved conductivity and durability
- Click to View more
X
N male right angel for STA360/CXN3507 cable RF Coaxial Connector Price And Quantity
- 1 Piece
- 500 INR/Piece
N male right angel for STA360/CXN3507 cable RF Coaxial Connector Product Specifications
- N Male Right Angle Connector for STA360/CXN3507 Cable
- Used for secure connection between STA360/CXN3507 cable and RF devices
- Precision RF-grade mechanical tolerance for secure fit and stable performance
- Suitable for low power RF signal applications
- Gold plated or corrosion-resistant finish for improved conductivity and durability
- Approx. 815 g (depending on design)
- Antenna systems, wireless communication units, RF modules, and instrumentation equipment
- Standard low-voltage RF applications
- Brass body, brass contact pin, Teflon insulator
- Standard low-voltage RF applications
- RF signal transmission systems, antenna connectivity, communication equipment, and testing setups
- Provides stable right-angle connection with low signal loss and reliable signal transfer
N male right angel for STA360/CXN3507 cable RF Coaxial Connector Trade Information
- NEW DELHI
- Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
- 3000 Piece Per Week
- 2 Days
- Yes
- Free samples available with shipping and taxes paid by the buyer
- As per customer requirements
- All India
- ISRO,DRDO
Product Description
RF Coaxial Connector Specifications
Electrical Specifications
| Parameter | Requirement |
|---|---|
| Frequency Range | DC 11 GHz |
| Dielectric Withstanding Voltage | 1500 V |
| Characteristic Impedance | 50 |
| Insulation Resistance | 5000 M |
| Contact Resistance Center Conductor | 1.0 m |
| Contact Resistance Outer Conductor | 0.2 m |
| VSWR | 1.20 |
Mechanical Specifications
| Parameter | Requirement |
|---|---|
| Durability (Mating Cycles) | 500 cycles |
Environmental Specifications
| Parameter | Requirement |
|---|---|
| Operating Temperature Range | -55C to +155C |
Material Specifications
| Connector Part | Material | Plating |
|---|---|---|
| Body | Brass | Nickel Plated |
| Pin Contacts | Bronze | Silver Plated |
| Insulators | PTFE (Teflon) |
Features
-
50 impedance for stable RF performance
-
Supports frequencies up to 11 GHz
-
Low contact resistance and low VSWR
-
High durability with over 500 mating cycles
-
PTFE insulation for excellent thermal and electrical stability
