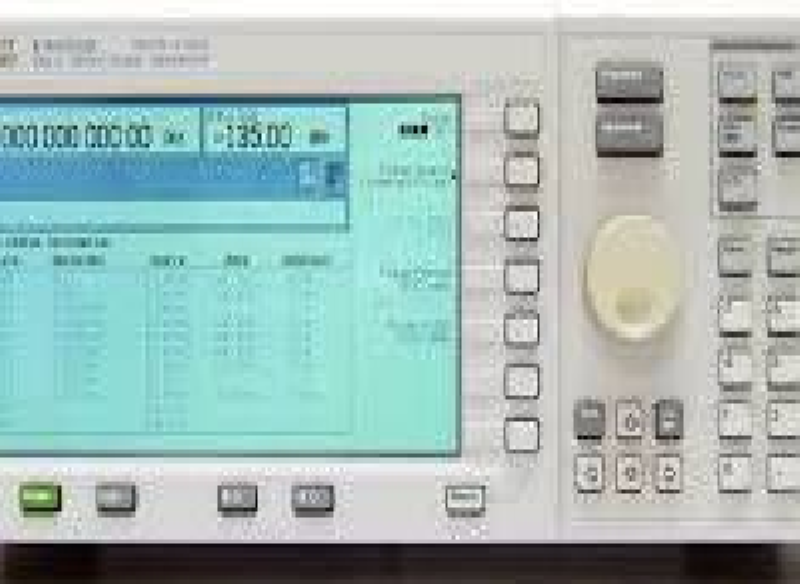

Agilent E4433B 253 kHz to 4 GHz.

Product Description

• Frequency Range: Extends from 250kHz up to 4GHz ManualsLib+15axiomtest.com+15testequipmentconnection.com+15

• Output Power Range: Typically +13dBm down to 136dBm, depending on frequency and attenuator option maximinstruments.com+2testequipment.center+2

• Modulation Support:

  • Digital: Over 15 formats including FSK, MSK, PSK, QAM (DECT, GSM, NADC, PDC, PHS, TETRA, etc.)

  • Analog: AM, FM, PM, pulse modulation; plus step/list sweep (frequency & power) TestMart+9axiomtest.com+9alliancetesteq.com+9

• RF Modulation Bandwidth: Up to 35MHz

• Memory & Sampling:

  • 1 Msample (4MB) waveform playback memory & 1 Msample storage

  • 40MHz sample rate, 14bit I/Q resolution Keysight+8axiomtest.com+8Keysight+8

• Options & Features:

  • Optional dual arbitrary waveform generator and real-time I/Q baseband generator (Option UN8/UN9/UND)

  • Firmware personalities for WCDMA (Option 200), cdma2000 (Option 201), EDGE (Option 202), and others like Bluetooth, TETRA, IS95A

  • Internal Bit Error Rate Analyzer, timeslot/data/burst generation, symbol rate/filter customization leasametric.com+11testequipmentconnection.com+11alliancetesteq.com+11

• Control Interfaces: GPIB (IEEE488) and RS232 maximinstruments.com+3alliancetesteq.com+3axiomtest.com+3
