Details Y branch Solar connector , Compatible MC4 connector Be used for branch connecting solar power system. The video of assembling solar connector with cable: Main Technical Specification: Maximum working voltage: 1000V DC Shell protection degree: IP67 Flame class: UL94-V0 Specification of Connecting Line: 4mm2 Pollution degree: 2 Ambient temperature range: -40+85 Contact resistance: 5m Insertion force: 50N Safety Level: class II Withdrawal force: 50N Products Introduction: With excellent aging resistance and UV endurance, it can be used in harsh environment. It does not need extra instruments for the removal of plugs and removal will not cause any harm to plugs. Main feature: 1. This solar branch Connector Set is the perfect solution to link any number of solar panels together. 2. Set includes 5male+1female and 5female+1male connectors cables. 3.The length of cable we depend on customer need it. 4.Flexible lead make this type of branch connector more versatile than the none flexible type. Package: 1.200pairs in a carton 2.carton dimension:38cm*29cm*47cm 3.Net weight:25kg 4.Gross weight:26kg

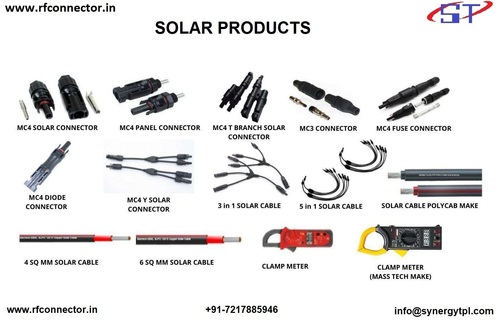

Solar: Solar connectors(MC4, MC4 branch, diode connectors, fuse connectors, tools including crimping tools including hydraulic, wrench, cutting tools), DC and AC solar UV protected cables and cable assemblies
Rated Voltage (VDC) - 1000 Type of appliance -PV Component Connector Rated Impulse Voltage (V) - 8000 Rated Current (A) - 25A Pollution Degree (1/2/3/4) - 3 Temp. Range - -40C~+90C Degree of Protection (IP Code)-IP67 Plug Power -30N-80N Contact Material - Copper Authentication - CE TUV
Insulation material - PPO Rated Current - 30Amp Rated Voltage - 1000V Test voltage - 6KV(50Hz,1Min) Contact material- Copper Tin Plated Contact resistance - 5m Degree of Protection (IP Code)-IP67 Flame class: UL94-V0 Temp. Range - -40C~+90C Connector Diameter - 2.5,4,6sqmm Suitable Cable - AWG14 / 12 / 10
Name Solar connectors (VDC)Rated Impulse Voltage (V) Rated Current (A) Pollution Degree (1/2/3/4) Overvoltage Category Low Ambient Temperature (C) Upper Ambient Temperature (C) Enclosure Rating ( RTI and Flammability Class) Value Range of Cable ClampRated Cross Section of Conductor Degree of Protection (IP Code)
