NISSEI Digital SWR Meter DG-503 (MAX) 1.6-525 MHz 200W Adjustable to measure DMR (TDMA), AM, SSB
18290 INR/Piece
Product Details:
- Size 140 x 82 x 122
- Frequency 1.6-525 MHz Megahertz (MHZ)
- Model DG-503MAX
- Features NA
- Product Type SWR METER
- Application SWR Power Meter
- Dimension (L*W*H) 140 x 82 x 122 Millimeter (mm)
- Click to View more
X
NISSEI Digital SWR Meter DG-503 (MAX) 1.6-525 MHz 200W Adjustable to measure DMR (TDMA), AM, SSB Price And Quantity
- 1 Piece
- 18290 INR/Piece
NISSEI Digital SWR Meter DG-503 (MAX) 1.6-525 MHz 200W Adjustable to measure DMR (TDMA), AM, SSB Product Specifications
- SWR Power Meter
- 140 x 82 x 122 Millimeter (mm)
- DG-503MAX
- NA
- 2-3 Kilograms (kg)
- SWR METER
- 140 x 82 x 122
- 1.6-525 MHz Megahertz (MHZ)
NISSEI Digital SWR Meter DG-503 (MAX) 1.6-525 MHz 200W Adjustable to measure DMR (TDMA), AM, SSB Trade Information
- NEW DELHI
- Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
- 10 Piece Per Day
- 1 Days
- Yes
- Within a certain price range free samples are available
- As per required customer
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- All India
- ISO
Product Description
ïïSpecification
- Frequency range: 1.6-525 MHz
- Adjustable to measure DMR (TDMA), AM, SSB
- Accuracy Class: +/- 5%
- Power: 200W (max): 200W (max)

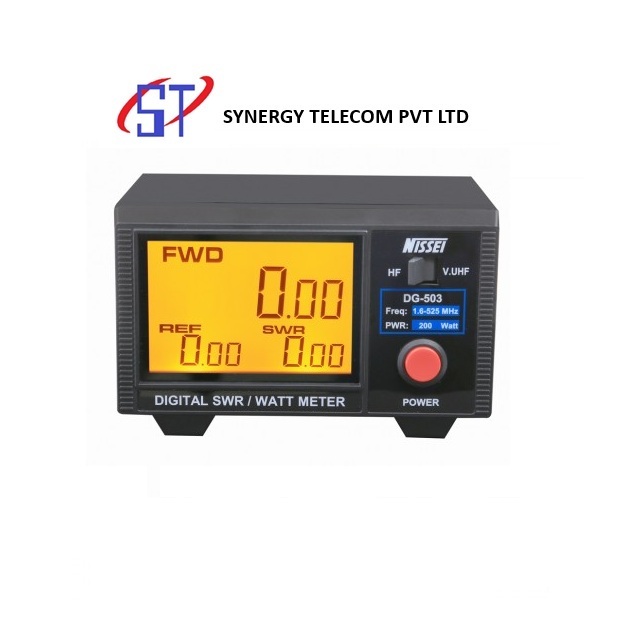

- Digital SWR Meter: Back light LCD display
- Dimensions: 140 x 82 x 122 m/m
- Measuring Voltage: DC 13.8V
- Function: SWR / Forward / Reversed Power
- Impedance: 50 ohm
- Made in Taiwan
Advanced Frequency Range
Covering a wide spectrum from 1.6 MHz to 525 MHz, the DG-503MAX is engineered for users operating across HF, VHF, and UHF bands. This wide frequency support makes it an essential tool for amateur radio operators, emergency communication setups, and commercial radio maintenance.
Versatile Modulation Support
The NISSEI DG-503MAX is compatible with various signal types, including DMR (TDMA), AM, and SSB. Its design accommodates both analog and digital modes, ensuring accurate measurements irrespective of communication protocol. This versatility is crucial for mixed-mode installations and transitioning environments.
Compact and Reliable Design
With a space-efficient size of 140 x 82 x 122 mm and a weight of 2-3 kg, the meter is easy to integrate into most radio operation environments. The solid construction ensures durability for both stationary workstations and mobile operations.
FAQs of NISSEI Digital SWR Meter DG-503 (MAX) 1.6-525 MHz 200W Adjustable to measure DMR (TDMA), AM, SSB:
Q: How do I use the NISSEI DG-503MAX SWR Meter to measure DMR (TDMA) signals?
A: Connect the SWR meter between your transmitter and the antenna system. Select the appropriate mode and frequency. When measuring DMR (TDMA), ensure the radio is transmitting and the reading is taken at the intended frequency. The DG-503MAX is optimized for accuracy with digital modes like DMR.Q: What are the benefits of using an SWR meter with a broad frequency range?
A: A meter supporting 1.6525 MHz allows users to work across multiple bandsHF, VHF, and UHFwithout swapping equipment. This flexibility is advantageous for operators with diverse or evolving needs.Q: When should I adjust the calibration settings on the DG-503MAX?
A: Calibration adjustment is recommended each time you change operating frequency, transmission mode (AM, SSB, DMR), or antenna configuration. This ensures ongoing accuracy and protects your equipment from mismatch-related damage.Q: Where is the NISSEI DG-503MAX typically used?
A: It is commonly deployed in amateur radio stations, commercial radio maintenance facilities, and emergency communication setups, owing to its wide compatibility with different bands and modulation types.Q: What is the process for setting up the DG-503MAX?
A: Position the meter between your transceiver and antenna. Use the devices interface to select the frequency range. Transmit using the desired mode and consult the digital display for real-time SWR and power readings.Q: How can I benefit from using the DG-503MAX in my radio system setup?
A: Accurate SWR and power measurements directly enhance signal quality, maximize transmission efficiency, and protect radio equipment from potential damage caused by poor antenna matches. This results in more reliable communications and longer device lifespans.Tell us about your requirement
