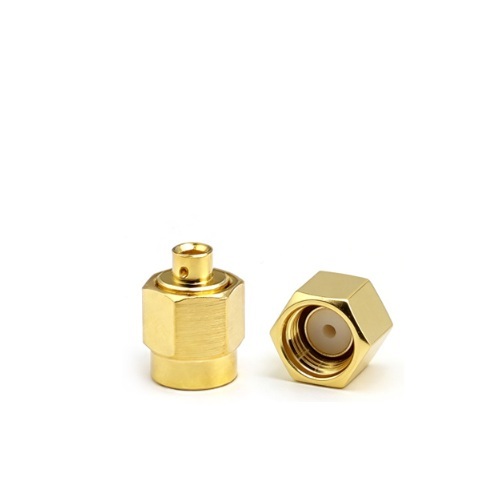

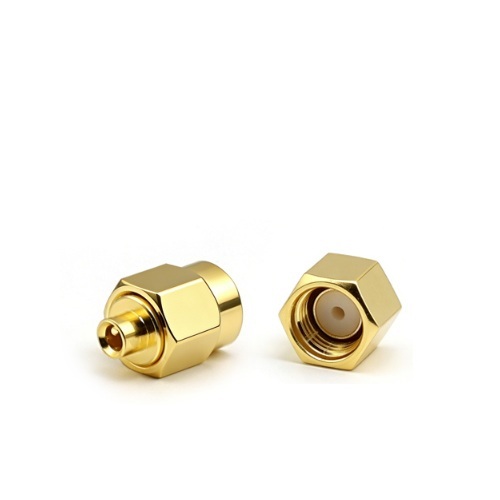

RF Coaxial Connector SMA Male Conn. for RG86 Cable

RF Coaxial Connector SMA Male Conn. for RG86 Cable

Name: RF Coaxial Connector SMA Male Conn. for RG86 Cable
Brand: SYNERGY TELECOM PVT. LTD.
Price: 800 INR
Availability: InStock

800 INR/Piece

Get a Price/Quote

Product Details:

Usage & Applications **Usage & Applications:** Used for RF coaxial cable assemblies with RG86 semi-rigid cables, providing stable 50 impedance connection for low-loss high-frequency signal transmission in RF, microwave, telecom, antenna, and test & measurement applications.
Product Type SMA Male RF Coaxial Connector (for RG86 cable)
Material Brass body & nut, PTFE insulator, silicone rubber gasket
Usage Used for RF coaxial cable assemblies with RG86 semi-rigid cables for high-frequency signal transmission.
Function Provides a stable 50 impedance connection with low signal loss and reliable RF performance up to 18 GHz.
Application RF communication systems, microwave equipment, antennas, telecom infrastructure, and test & measurement instruments.
Finish SUCO plated brass body and coupling nut with gold-plated center contact for corrosion resistance and good conductivity.
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

RF Coaxial Connector SMA Male Conn. for RG86 Cable Price And Quantity

Minimum Order Quantity 1 Piece
Price 800 INR/Piece

RF Coaxial Connector SMA Male Conn. for RG86 Cable Product Specifications

Voltage RF signal level (low voltage applications)
Function Provides a stable 50 impedance connection with low signal loss and reliable RF performance up to 18 GHz.
Weight Lightweight precision connector
Usage Used for RF coaxial cable assemblies with RG86 semi-rigid cables for high-frequency signal transmission.
Finish SUCO plated brass body and coupling nut with gold-plated center contact for corrosion resistance and good conductivity.
Power Suitable for low-power RF signal applications.
Usage & Applications **Usage & Applications:** Used for RF coaxial cable assemblies with RG86 semi-rigid cables, providing stable 50 impedance connection for low-loss high-frequency signal transmission in RF, microwave, telecom, antenna, and test & measurement applications.
Tolerance Precision RF connector (50 impedance controlled)
Size Compatible with RG86 (.086") semi-rigid coaxial cable
Product Type SMA Male RF Coaxial Connector (for RG86 cable)
Application RF communication systems, microwave equipment, antennas, telecom infrastructure, and test & measurement instruments.
Material Brass body & nut, PTFE insulator, silicone rubber gasket

RF Coaxial Connector SMA Male Conn. for RG86 Cable Trade Information

Payment Terms Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
Supply Ability 2000 Piece Per Week
Delivery Time 2 Days
Sample Available Yes
Sample Policy Free samples available with shipping and taxes paid by the buyer
Packaging Details As per customer requiorements
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Certifications ISRO, DRDO

Product Description

Electrical Specifications

Parameter	Requirement
Impedance	50
Frequency Range	DC 18 GHz
Center Contact Resistance	3 m
Outer Contact Resistance	2 m
Insulation Resistance	5000 m
VSWR	1.25:1

Mechanical & Environmental Specifications

Parameter	Requirement
Operating Temperature Range	-40C to +70C
Durability	> 500 mating cycles

Material & Plating Specifications

Component	Material	Plating
Body	Brass	SUCO plated
Coupling Nut	Brass	SUCO plated
Gasket	Silicone Rubber
Pin Contact	Brass	Gold plated
Insulator	PTFE (Teflon)

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'SMA CONNECTOR' category

SMA MALE LMR 200 CRIMP Price : 25 INR/Piece Minimum Order Quantity : 10 Product Type : CRIMP Application : RF Material : BRASS Tolerance : IN CM Centimeter (cm) Size : 4 Usage : CONNECTOR CABLE AND MICROWAVE PARTS Weight : 20GRAM Grams (g) Finish : NA Power : 50WATT Watt (w) Voltage : WATT Watt (w) Function : CONNECTOR Color : GOLD Heat Proof : 1 Insulation : Indoor/ outdoor Number of Conductor : 1 Conductor Diameter : 0.94 mm/m Conductor Number : 1 No Of Core : 1

Send Inquiry

SMA FEMALE BULKHEAD RG 141 SOLDER CONNECTOR Price : 55 INR/Piece Minimum Order Quantity : 10 Product Type : sma connector Application : RF Material : BRASS Tolerance : IN CM Centimeter (cm) Size : 4 Usage : CONNECTOR CABLE AND MICROWAVE PARTS Weight : 20GRAM Grams (g) Finish : NA Power : 50WATT Watt (w) Voltage : WATT Watt (w) Function : CONNECTOR Color : GOLD Heat Proof : 1 Insulation : Indoor/ outdoor Number of Conductor : 1

Send Inquiry

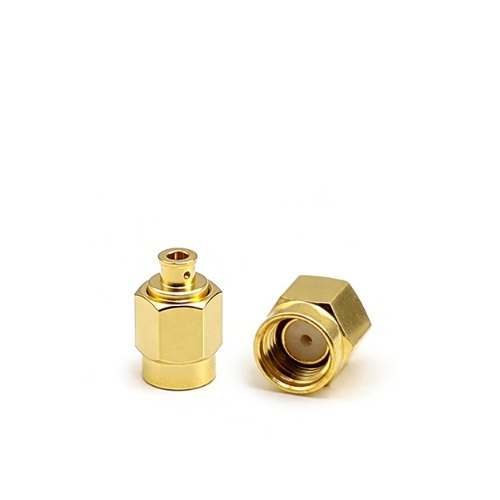

ISMA Male Connector for RG86/RG405 Cable Price : 748 INR/Piece Minimum Order Quantity : 1 Product Type : SMA Male Connector for .086 / RG405 Cable Application : Wireless communication devices, measurement systems, RF assemblies, aerospace electronics, and lab testing setups Material : Brass body, beryllium copper contact pin, Teflon insulator Tolerance : Precision RFgrade manufacturing tolerance for secure fit and stable performance Size : Standard lowvoltage electronic applications Usage : Used for secure connection between SMA interface and .086 / RG405 coaxial cable Weight : Standard lowvoltage electronic applications Finish : Gold plated body and contact surfaces for improved conductivity and corrosion resistance Power : Suitable for low power signal transmission applications Voltage : Standard lowvoltage electronic applications Function : Provides stable electrical connection with low signal loss and reliable performance
