RF Combiner

698-4000MHz 300W 7dB Directional Coupler with N Female Connector

Directional Coupler N Female 698-4000 Mhz

3 TO 1 COMBINER 698~2700 MHZ

Color Black / Customized Frequency Band 698-2700MHz Impedance 50 Ohm VSWR Less Then 1.3 Average Power 20 W Connector SMA- Female / Customized

2 TO 1 COMBINER 698~2700 MHZ

Color Black / Customized Frequency Band 698-2700MHz Impedance 50 Ohm VSWR Less Then 1.3 Average Power 20 W Connector N- Female / Customized

2 TO 2 COMBINER 698~2700 MHZ

Color Black / Customized Frequency Band 698-2700MHz Impedance 50 Ohm VSWR Less Then 1.3 Average Power 20 W Connector N- Female / Customized

4 TO 1 COMBINER 698~2700 MHZ

Color Black / Customized Frequency Band 698-2700MHz Impedance 50 Ohm VSWR Less Then 1.3 Average Power 20 W Connector N- Female / Customized

2 In 2 Out 3Db Hybrid Combiner Coupler with Din female 555-6000MHz

2 In 2 Out 3Db Hybrid Combiner Coupler with Din female 555-6000MHz

5G 698-4000MHz N-F 2 In 1 Out Hybrid Combiner For IBS And DAS

698-4000MHz N-F 2 In 1 Out Hybrid Combiner

5G 698-4000MHz N-F 2 In 2 Out Hybrid Combiner For IBS And DAS

698 To 4000MHz N Female 2 In 2 Out Hybrid Combiner

698-4000MHz 300w hybrid combiner 4 in 4 out Hybrid Combiner N Female low PIM

RF Hybrid Coupler Combiner covers frequency from 698 To 3800MHz which is used for IBS DAS and in hot sale in AU Market It can be customized according to clients requirements

2:1 COMBINER 698-4000MHZ 4.3-10 F LOW PIM 160DBC

Part Number VN-HC2x1-0560-15W-ON Operating Frequency ( MHz ) 500-6000 Impedance ( Ohm ) 50 VSWR 1.35 Insertion Loss (dB) ‰4.5 Isolation (dB) 20 IM3 (dBc @ 2—43dBm) -130 Application Indoor & Outdoor Degree of Protection IP65 Operating Temperature ( „ ) -40 + 80 Interface N Female Handling Power (Watt, max) 15 Peak Power (Watt, max) 150 Dimension (mm)(L—W—H, excl connector) 151X40X38 Net Weight (g) 600± 5% Packing Dimensions (mm,L—W—H) 170X100X40 Packing Carton Size (mm,L—W—H) 520X360X105 ROHS Compliance Yes Revision R1 Date 13-

4 TO 4 COMBINER 698~2700 MHZ

Color Black / Customized Frequency Band 698-2700MHz Impedance 50 Ohm VSWR Less Then 1.3 Average Power 20 W Connector N- Female / Customized

4:4 COMBINER FREQ 698-3800 MHZ PIM 160DBC

4:4 COMBINER FREQ 698-3800 MHZ PIM 160DBC

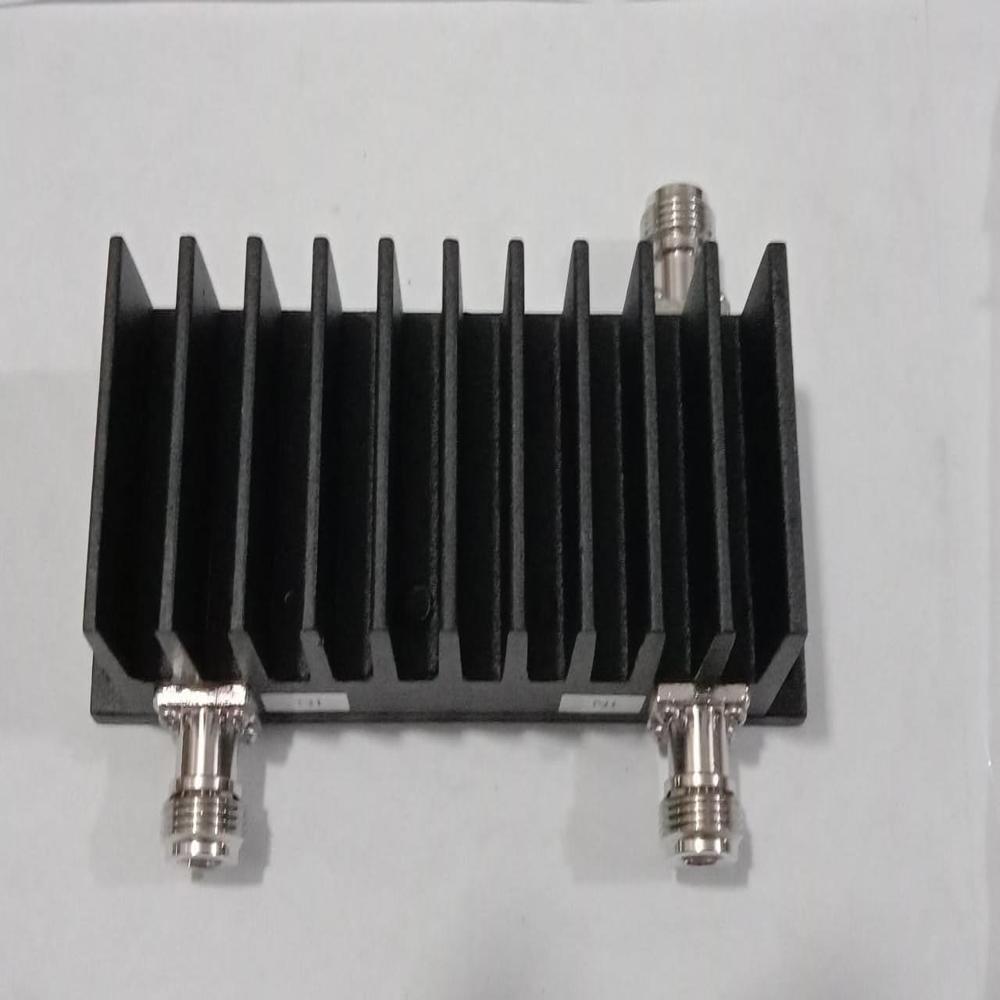

2:1 COMBINER 698~4000 MHZ

2 : 2 COMBINER 698~4000 MHZ

4 :1 COMBINER 698~4000MHZ
