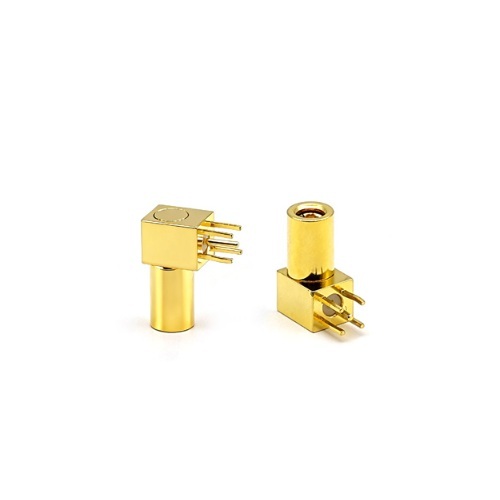

RF Connector SSMB Female Right Angle PCB Mount

RF Connector SSMB Female Right Angle PCB Mount

Name: RF Connector SSMB Female Right Angle PCB Mount
Brand: SYNERGY TELECOM PVT. LTD.
Price: 140 INR
Availability: InStock

140 INR/Piece

Get a Price/Quote

Product Details:

Usage & Applications Communication systems, electronic devices, RF modules, testing equipment, and measurement instruments
Product Type RF Connector (DC3 GHz Range)
Material Brass body and contact, Teflon insulator
Usage Used for reliable connection between RF interfaces in signal transmission systems
Function Provides stable electrical connection with controlled impedance and low signal loss
Application Wireless communication devices, antennas, instrumentation systems, and electronic assemblies
Finish Gold plated contact surfaces for better conductivity and corrosion resistance
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

RF Connector SSMB Female Right Angle PCB Mount Price And Quantity

Price 140 INR/Piece
Minimum Order Quantity 1 Piece

RF Connector SSMB Female Right Angle PCB Mount Product Specifications

Usage Used for reliable connection between RF interfaces in signal transmission systems
Weight Lightweight construction
Tolerance Precision RF-grade mechanical tolerance
Application Wireless communication devices, antennas, instrumentation systems, and electronic assemblies
Usage & Applications Communication systems, electronic devices, RF modules, testing equipment, and measurement instruments
Function Provides stable electrical connection with controlled impedance and low signal loss
Material Brass body and contact, Teflon insulator
Product Type RF Connector (DC3 GHz Range)
Size Compact connector design
Finish Gold plated contact surfaces for better conductivity and corrosion resistance
Power Suitable for low power signal applications
Voltage Standard low-voltage electronic applications

RF Connector SSMB Female Right Angle PCB Mount Trade Information

FOB Port NEW DELHI
Payment Terms Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union
Supply Ability 4000 Piece Per Week
Delivery Time 2 Days
Sample Available Yes
Sample Policy Free samples available with shipping and taxes paid by the buyer
Packaging Details As per customer requirements
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Certifications ISRO, DRDO

Product Description

Electrical Specifications

Parameter	Requirement
Impedance	50
Frequency Range	DC to 3 GHz
Center Contact Resistance	5 m
Outer Contact Resistance	2.5 m
Insulation Resistance	1000 M

Mechanical & Environmental Specifications

Parameter	Requirement
Operating Temperature Range	-45C to +125C
Durability (Mating Cycles)	> 500 cycles

Material & Plating Specifications

Component	Material	Plating
Body	Brass	Gold Plated
Pin Contact	Brass	Gold Plated
Insulators	Teflon

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'SMA CONNECTOR' category

SMA Male Connector for RG86 Cable Price : 350 INR/Piece Minimum Order Quantity : 5 Product Type : SMA Male RF Connector Material : Brass body & contact, PTFE insulation Application : Electronic devices, laboratory equipment, measurement instruments, wireless systems Usage : Connection of coaxial cables in signal systems Finish : Gold Plated Function : Provides stable RF signal transfer with low loss and secure coupling Tolerance : Precision RF manufacturing standard Weight : Lightweight precision connector Voltage : 335 V RMS (approx.) Power : Low to medium signal power applications Size : Compatible with RG86 coaxial cable Usage & Applications : Highfrequency electronic signal transmission, RF cable assemblies

Send Inquiry

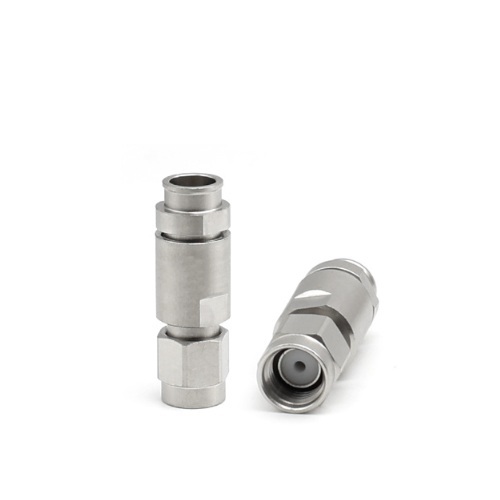

SMA Male Stainless steel Connector for Gore3449 Cable Price : 750 INR/Piece Minimum Order Quantity : 1 Product Type : Suitable for low power electronic signal applications Material : Stainless steel body, beryllium copper pin contact, PEI insulator Application : Communication equipment, measurement systems, control units, aerospace electronics, and industrial devices Usage : Used for secure connection between Gore 3449 cable and compatible SMA interface devices Finish : Gold plated contact surfaces for improved conductivity and corrosion resistance Function : Provides stable and reliable signal transmission with strong mechanical mating and durability Tolerance : Precision RFgrade mechanical tolerance for secure fit and stable performance Weight : Lightweight construction Voltage : Standard lowvoltage electronic applications Power : Suitable for low power electronic signal applications Size : Compact SMA connector design Usage & Applications : Electronic communication systems, instrumentation equipment, testing setups, and industrial signal interconnects
