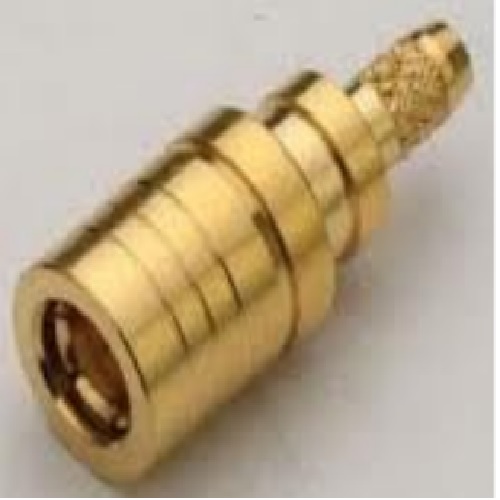

SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P:-
50.0 INR/Piece
Product Details:
- Product Type RF Coaxial Connector, SMB Female, Crimp Type
- Material Brass (body), gold plating; PTFE (insulator)
- Usage For coaxial cable terminations, mainly in RF applications
- Function Provides a secure connect/disconnect interface for RF signal transfer
- Application Telecommunications, wireless communication, broadcast, data transmission, test equipment
- Finish Gold plated
- Power Typically up to 100W (varies with frequency and cable type)
- Click to View more
X
SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P:- Price And Quantity
- 50.0 INR/Piece
- 10 Piece
SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P:- Product Specifications
- Compatible with RG316, RG174, RG179, LMR100 cables
- Typically up to 100W (varies with frequency and cable type)
- Brass (body), gold plating; PTFE (insulator)
- Gold plated
- Provides a secure connect/disconnect interface for RF signal transfer
- Withstands up to 335V rms max
- RF Coaxial Connector, SMB Female, Crimp Type
- Approx. 5 grams
- Telecommunications, wireless communication, broadcast, data transmission, test equipment
- For coaxial cable terminations, mainly in RF applications
- Standard RF connector tolerance, typically 0.05mm
- -65C to +165C
- Brass, gold plated
- Female
- DC to 4 GHz
- Gold
- Snap-on (push-on)
- Cable mount, crimp
- Crimp for RG316/174/179/LMR100
- Gold
- 50 Ohms (nominal)
Product Description
Experience the crackerjack performance of our Hot-selling SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P connectors. Peerless in design, this immaculate RF connector is optimized for exceptional transmission, ensuring secure, low-loss signal transfer in high-demand applications. Compatible with major coaxial cables like RG316, RG174, RG179, and LMR100, it boasts robust gold plating for optimal conductivity and resilience. With a snap-on coupling mechanism, its 50 Ohms nominal impedance, and capacity up to 100W, this top-tier solution is perfect for telecommunications, wireless, broadcast, or testing. Pick yours now for superior connectivity.
Core Features & Application Spectrum
Ideal for telecommunications, wireless infrastructure, broadcasting, and precision test equipment, the SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P connector achieves premium performance across RF signal transmission. Its robust gold-plated body and crimp design ensure enduring, low-loss connections. The snap-on interface lets users swiftly connect and disconnect, while standard tolerance and a wide operational temperature range boost reliability. This connector's versatility makes it indispensable for modern data transmission and signal integrity applications.
Shipping, Lead Time & Sample Provisions
FOB port delivery is efficiently arranged to expedite your orders, with stock ready for immediate dispatch. Delivery time is typically estimated based on order volume and destination, aiming for optimal promptness. Samples can be provided for evaluation, subject to applicable charges prior to final purchase. For detailed stock status or to receive a tailored estimate, connect with our support team and benefit from seamless order processing and product selection assistance.
Core Features & Application Spectrum
Ideal for telecommunications, wireless infrastructure, broadcasting, and precision test equipment, the SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P connector achieves premium performance across RF signal transmission. Its robust gold-plated body and crimp design ensure enduring, low-loss connections. The snap-on interface lets users swiftly connect and disconnect, while standard tolerance and a wide operational temperature range boost reliability. This connector's versatility makes it indispensable for modern data transmission and signal integrity applications.
Shipping, Lead Time & Sample Provisions
FOB port delivery is efficiently arranged to expedite your orders, with stock ready for immediate dispatch. Delivery time is typically estimated based on order volume and destination, aiming for optimal promptness. Samples can be provided for evaluation, subject to applicable charges prior to final purchase. For detailed stock status or to receive a tailored estimate, connect with our support team and benefit from seamless order processing and product selection assistance.
FAQ's of SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P:-:
Q: How do I properly crimp the SMB (F) BN B/H connector onto RG316, RG174, RG179, or LMR100 cables?
A: To ensure optimal electrical performance, use an appropriate crimping tool compatible with the specified cable type. Insert the prepared cable into the connector, position the crimp sleeve, and uniformly compress with the tool to achieve a secure mechanical and electrical connection.Q: What are the primary benefits of using this SMB connector in RF applications?
A: This connector provides a secure snap-on interface, gold-plated contacts for reduced signal loss, and peerless reliability across a wide frequency range, making it ideal for telecommunications, data transmission, and wireless equipment.Q: Where is this connector typically used or installed?
A: These connectors are commonly found in broadcast systems, telecommunications networks, wireless infrastructure, and laboratory testing setups requiring quick, reliable RF cable terminations.Q: What is the maximum operating frequency and impedance specification for this connector?
A: The SMB (F) BN B/H RG316/174/179/LMR100 CRIMP G/P connector operates efficiently from DC up to 4 GHz and maintains a nominal impedance of 50 Ohms.Q: When can I expect delivery if I place an order for this product?
A: Delivery times are estimated upon order confirmation and depend on quantity and location. We typically have stock ready for fast shipment; contact us for a precise estimate.Q: How robust is the connector in extreme temperature conditions?
A: With a tolerance range from -65C to +165C and gold-plated brass construction, this connector maintains stable performance even in challenging environments.Tell us about your requirement
