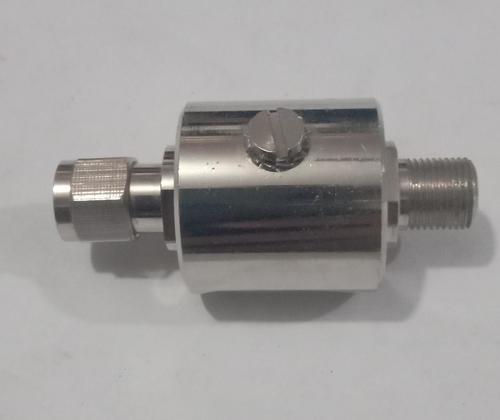

Surge Arrestor

Surge Arrestor
Surge Arrestor
Send Inquiry
Product Code : SY MICROWAVE COMPONE
Brand Name : SYNERGY
Product Description

Surge Arrestor

It is often required for industrial purposes to confine the surge created due to various standing beams. We are offering an extensively useful range of Surge Arrestor which is specifically designed in compliance with the industrial standards. For manufacturing these arrestors major designing procedures are stringently followed to ensure the procurement of flawless articles. With below given details Surge Arrestor can be availed.

Surge Arrestor -- Technical Specifications

  • Frequency Range: ---824-970MHz & 1710-2300MHz
  • Unit Impedance: 50
  • VSWR: 1.2
  • Connector Type: N-Female/N-Female
  • RF Power: 500W
  • Withstanding Lightning-strike Current: 50kA/Max.

Dummy load- HT 3gc-1,2,10,20,50,100,200,500W

  • Frequency range: DC-3 GHz
  • Max. VSWR: 1.2:1
  • Input impedance: 50 Ohm,,,
  • Connector type: N or SMA
  • Dimension: 75mm,,,
  • Weight: 0.40Kg,,
  • Material: Aluminum,,,
  • Temperature range: - +65

Attenuators HT 3gc-1,2,10,20,50,100,200W-3/6/10/20/30

  • Frequency range: DC-3 GHz
  • Max. VSWR: 1.2:1 Attenuation: 3/6/10/20/ 30dB
  • Input impedance: 50 Ohm,,,Connector type: N or SMA Dimension: 90mm,,Weight: 0.40Kg,,Material: Aluminum,,Temperature range: -40‚¬Å¡Ãƒâ€šÃ‚°C - +65°C

Duplexer Filter 900 Band:

  • Rx Passband: 880 - 915 MHz min. Tx Passband: 925 - 960 MHz min
  • Passband Loss: 1.25dB max. Passband Loss: 1.25dB max.
  • Passband VSWR: 1.5:1 Passband VSWR: 1.5:1
  • >80dB 925 to 960 MHz >80dB 880 - 915 MHz
  • Connectors: Type "N" Female
