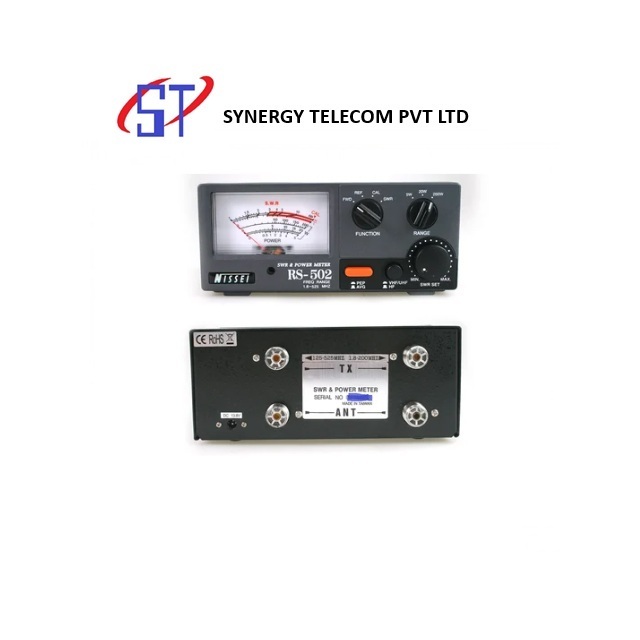

NISSEI Analog SWR Meter RS-502 1.6-525 MHz 200W
17582 INR/Piece
Product Details:
- Frequency 1.6-525 MHz Megahertz (MHZ)
- Model RS-502
- Features NISSEI Analog SWR Meter RS-502 1.6-525 MHz 200W
- Size 140 x 82 x 122
- Product Type SWR POWER METER
- Application SWR Power Meter
- Dimension (L*W*H) 140 x 82 x 122 Millimeter (mm)
- Click to View more
X
NISSEI Analog SWR Meter RS-502 1.6-525 MHz 200W Price And Quantity
- 17582 INR/Piece
- 1 Piece
NISSEI Analog SWR Meter RS-502 1.6-525 MHz 200W Product Specifications
- 1.6-525 MHz Megahertz (MHZ)
- RS-502
- 2-3 Kilograms (kg)
- NISSEI Analog SWR Meter RS-502 1.6-525 MHz 200W
- 1 Pcs/hr
- 140 x 82 x 122
- SWR Power Meter
- 140 x 82 x 122 Millimeter (mm)
- SWR POWER METER
NISSEI Analog SWR Meter RS-502 1.6-525 MHz 200W Trade Information
- NEW DELHI
- Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
- 10 Piece Per Day
- 1 Days
- Within a certain price range free samples are available
- As per required customer
- Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East
- All India
- ISO
Product Description
Main Features:
- Large meter display for ease of reading.
- Forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP], for SSB and AM transmitters).
- Reflected RF power readings.
- VSWR rations.
- Illuminated meter.
- Convenient control layout for ease operation.
ïïSpecification
- Frequency range: 1.6-525 MHz
- Accuracy Class: +/- 5%
- Power: 200W (max): 200W (max)
- Analog SWR Meter: Illuminated meter.
- Dimensions: 140 x 82 x 122 m/m
- Measuring Voltage: DC 13.8V
- Function: SWR / Forward / Reversed Power/ PEP
- Impedance: 50 ohm
- Made in Taiwan
High-Precision SWR Meter for Reliable RF Monitoring
The NISSEI RS-502 offers accurate analog SWR and power measurements across a broad frequency spectrum of 1.6-525 MHz. Its robust construction ensures reliability, while user-friendly controls and a clear display make setup straightforward, even for beginners. Ideal for amateur and professional settings, this meter helps safeguard radio equipment by providing timely and precise SWR readings.
Versatile Applications and Easy Integration
This SWR meter is suitable for various applications, including radio broadcasting, amateur radio, and laboratory testing. With a compact design (140 x 82 x 122 mm), the RS-502 fits easily into workbenches or mobile setups. Its broad measurement range and 200W power capacity allow you to use it with different radio systems, making it a versatile addition to any RF toolkit.
FAQs of NISSEI Analog SWR Meter RS-502 1.6-525 MHz 200W:
Q: How do I use the NISSEI Analog SWR Meter RS-502 to measure SWR in my radio system?
A: To measure SWR, first connect the RS-502 between your radio transmitter and antenna. Power on your transmitter and select the appropriate frequency (within 1.6525 MHz). Adjust the meter for forward power, then switch to reflected power to read SWR values. An SWR close to 1:1 indicates optimal antenna matching.Q: What is the benefit of using this SWR meter for RF applications?
A: Utilizing the RS-502 helps you protect your radio equipment by detecting mismatches in the antenna system. Accurate SWR readings prevent damage to transmitters, improve signal clarity, and optimize power transfer, ensuring effective and reliable communication.Q: When is it necessary to check SWR with the RS-502?
A: It is important to check SWR whenever installing a new antenna, tuning an RF circuit, experiencing signal issues, or as a part of routine maintenance. Regular monitoring ensures optimal performance and protects your radio gear from potential damage.Q: Where can I purchase the NISSEI SWR Meter RS-502?
A: The RS-502 is available through reputable distributors, manufacturers, suppliers, and wholesalers, especially those specializing in radio and RF parts. It is produced in Taiwan and may be found via authorized dealers or specialized electronics outlets.Q: What is the process for setting up the RS-502 for a power measurement?
A: Place the device in-line between the transmitter and antenna, ensuring all connections are secure. Set the meter to forward to measure transmitted power. If needed, consult the user manual for calibration steps prior to measurements for best accuracy.Q: Can the RS-502 be integrated into different radio systems?
A: Yes, the wide frequency range (1.6525 MHz) and 200W power rating allow the RS-502 to be compatible with most HF, VHF, and UHF radio systems, making it a flexible instrument for a variety of communication setups.Tell us about your requirement
